KsAddDevice

对于WDM驱动，必须提供DriverObject->DriverExtension->AddDevice回调函数创建设备对象fdo.
KsInitializeDriver函数将其AddDevice置为KsAddDevice，我们来分析FDO的创建和初始化过程。

在KsAddDevice中，首先调用IoGetDriverObjectExtension从驱动象象的扩展对象链表中获取我们的设备描述符。

NTSTATUS
NTAPI
KsAddDevice(
    IN PDRIVER_OBJECT DriverObject,
    IN PDEVICE_OBJECT PhysicalDeviceObject
    )
{
    PKSDEVICE_DESCRIPTOR* descriptorInExt = (PKSDEVICE_DESCRIPTOR*)(IoGetDriverObjectExtension(
                    DriverObject,
                    PVOID(KsInitializeDriver)));

    return     KsCreateDevice(
                DriverObject,
                PhysicalDeviceObject,
                descriptorInExt ? *descriptorInExt : NULL,
                0,
                NULL);
}

注意，其对象的标识是PVOID(KsInitializeDriver)，即函数指针。
获取到设备描述符之后，调用KsCreateDevice。

NTSTATUS
KsCreateDevice(
    IN PDRIVER_OBJECT DriverObject,
    IN PDEVICE_OBJECT PhysicalDeviceObject,
    IN const KSDEVICE_DESCRIPTOR* Descriptor OPTIONAL,
    IN ULONG ExtensionSize OPTIONAL,//device extensize
    OUT PKSDEVICE* Device OPTIONAL
    )

由于设备扩展对象ExtensionSize的值为0，故自动将期扩充为一个指针的大小。

这里其实只是一个临时创建的，后面会再次根据这个指针指向一个

    typedef PVOID   KSDEVICE_HEADER, KSOBJECT_HEADER;
    if (ExtensionSize == 0)
    {
        ExtensionSize = sizeof(KSDEVICE_HEADER);
    }

创建设备对象，并IoAttachDeviceToDeviceStack之后，调用KsInitializeDevice初始化设备。

    PDEVICE_OBJECT FunctionalDeviceObject;
    NTSTATUS status = IoCreateDevice(DriverObject,ExtensionSize,NULL,FILE_DEVICE_KS,0,FALSE,&FunctionalDeviceObject);
    if (NT_SUCCESS(status))
    {
        PDEVICE_OBJECT nextDeviceObject = IoAttachDeviceToDeviceStack(FunctionalDeviceObject,PhysicalDeviceObject);
        if (nextDeviceObject)
        {
            FunctionalDeviceObject->Flags |= DO_POWER_PAGABLE;
            status = KsInitializeDevice(FunctionalDeviceObject,PhysicalDeviceObject,nextDeviceObject,Descriptor);
        }
        else
        {
            status = STATUS_DEVICE_REMOVED;
        }
     }
     if (NT_SUCCESS(status))
     {
        FunctionalDeviceObject->Flags &= ~DO_DEVICE_INITIALIZING;
        if (Device)
        {
            *Device = KsGetDeviceForDeviceObject(FunctionalDeviceObject);
        }
     }
     else
     {
        if (nextDeviceObject)
        {
            IoDetachDevice(nextDeviceObject);
        }
        IoDeleteDevice(FunctionalDeviceObject);
    }
    return status;

KsInitializeDevice

在KsInitializeDevice函数中，实际上是创建CKsDevice对象，并初始化。

 CKsDevice *device =  new(NonPagedPool,POOLTAG_DEVICE) CKsDevice(NULL);
 NTSTATUS status;
    if (device) {
        device->AddRef();
        status = device->Init( FunctionalDeviceObject, PhysicalDeviceObject,NextDeviceObject,  Descriptor);
        device->Release();
    }
    else
    {
        status = STATUS_INSUFFICIENT_RESOURCES;
    }

所以，关键点在于CKsDevice::Init,Init初始化了其一系统的成员变量之后

    NTSTATUS status;
   //DeviceExtension如果有，一般内容为CreatedDeviceObject + 1，否则为NULL
    PKSIDEVICE_HEADER deviceHeader = *(PKSIDEVICE_HEADER *)(FunctionalDeviceObject->DeviceExtension);
    //其指针内容为空时，方可创建新的，为其赋值
    if (! deviceHeader)
    {
        //创建KSDEVICE_HEADER内存空间，并返回指针
        status = KsAllocateDeviceHeader((KSDEVICE_HEADER *)&deviceHeader,0,NULL);

        if (NT_SUCCESS(status))
        {
            *(PKSIDEVICE_HEADER *)(FunctionalDeviceObject->DeviceExtension) =  deviceHeader;
        }
    }
    else
    {
        status = STATUS_SUCCESS;
    }

成功之后：

    if (NT_SUCCESS(status)) {
        deviceHeader->Object = PVOID(&m_Ext.Public);
    }

m_Ext.Publica其实是KSDEVICE对象，也即AVStream中外露的设备对象。

总线接口的信息的获取。

    if (NT_SUCCESS(status)) {
        status = GetBusInterfaceStandard();
    }

根据设备描述符数组，创建其厂对象。

    //
    // Create filter factories.
    //
    if (NT_SUCCESS(status) && Descriptor) {
        //AcquireDevice();
        const KSFILTER_DESCRIPTOR*const* filterDescriptor =    Descriptor->FilterDescriptors;
        for (ULONG ul = Descriptor->FilterDescriptorsCount;NT_SUCCESS(status) && ul--; filterDescriptor++)
        {
            status = KspCreateFilterFactory(
                                &m_Ext,
                                &m_Ext.ChildList,
                                *filterDescriptor,
                                NULL,
                                NULL,
                                0,
                                NULL,
                                NULL,
                                NULL);
         }
        //ReleaseDevice();
    }

如果设置了AddDevice回调，调用。

    if (NT_SUCCESS(status) &&   Descriptor &&  Descriptor->Dispatch &&  Descriptor->Dispatch->Add)
    {
        status = Descriptor->Dispatch->Add(&m_Ext.Public);
    }

这里的m_Ext.Public就是KSDEVICE.

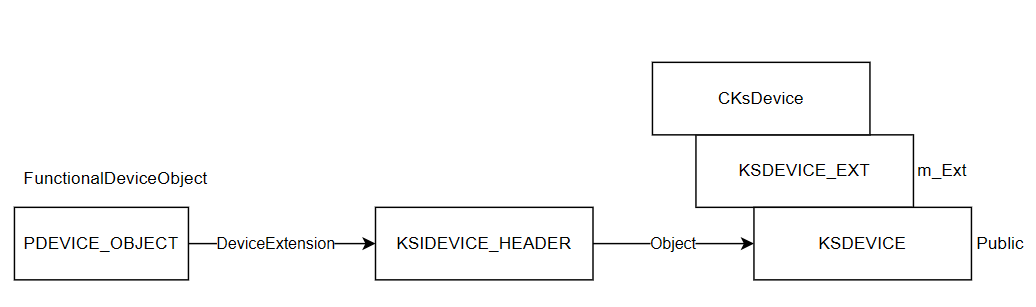

对象关系图如下：

KsGetDeviceForDeviceObject

KsGetDeviceForDeviceObject其实是不调用的，因为Device为空。不过看其代码也只是获取的是m_Ext.Public，也是 deviceHeader->Object
